Garrett PowerMax turbocharger: new power and performance level!Turbocharger number:9170565002SManufacturer:Garrett Motion
The9170565002S turbocharger replacesthe original weaker turbocharger number:
06Q145702B OEM
8826560007 Garrett Original Turbo Number
8826565007S Garrett Aftermarket Turbo Number.
A turbocharger number 9170565002S can be mounted on the following cars:
VW GOLF GTI 2.0L EA888 EVO4 L4 452KM/333KW 2020
VW Tiguan 2.0L TSI EA888 EVO4 L4 452KM/333KW 2020
AUDI Q3 45 2.0L TFSI EA888 EVO4 L4 452KM/333KW 2021
AUDI TT 45 2.0L TFSI EA888 EVO4 L4 452KM/333KW 2020
Skoda Kodiaq RS 4x4 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021
Skoda Octavia RS 2.0L EA888 EVO4 L4 452KM/333KW 2020
Cupra Leon 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021
Cupra Formentor 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021
SEAT TARROCO 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021

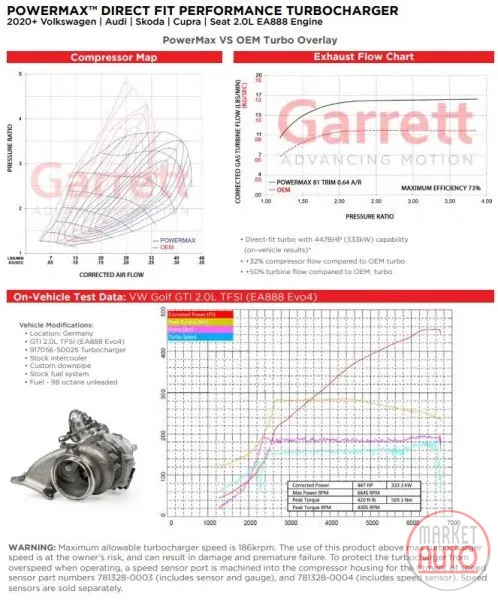

GTX Gen II compressor aerodynamics increase turbocharger flow by a staggering 32 compared to the OEM turbo.Embrace the future of power with the hightemperature MarM alloy turbine wheel paired with stateoftheart turbine aerodynamics and a robust twin scroll stainless steelturbine housing capable of withstanding up to 1050C of heat. Elevate your driving game and experience performance like never before with PowerMax.
WARNING:The maximum allowable turbocharger speed is 186krpm.The use of this product above max turbocharger speed is at the owners risk and can result in damage and premature failure.To protect the turbocharger from overspeed when operating a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 7813280003 includes sensor and gauge and 7813280004 includes speed sensor. Speed sensors are sold separately.
For turbocharger installation please follow the OEM service manual. Recommendation for elongation of the venturi injector wire heat shroud on Garrett PowerMax turbo installations.
- Venturi Injector and harness. Wire heat shroud
- To elongate the venturi injector wire heat shroud apply gentle heat approx 23 inches 515cm away from the wire heat shroud until shroud can be elongated to desired length. Caution: Overheating may result in damage to wire shroud and wires
- Tape should be used in the area where the wire shroud is close to the engine block for wear protection.
